Reliable motor control for safe, consistent fan performance.
The KIWI M Series Fan Motor Controller is designed for variable-torque loads, including fans, centrifugal pumps and single-phase electric motors. Soft Start to FULL helps motors start safely and reach operating speed before returning to the user’s selected setting. Explore the range below to find the right controller for your motor application.
KIWI M Series Fan Motor Controllers are designed for variable-torque loads, including fans, centrifugal pumps and single-phase electric motors. Rated for AC3 inductive loads, the range provides reliable leading-edge motor control from 350VA to 3000VA.
Soft Start to FULL gradually increases voltage at start-up, helping the motor reach operating speed and rotate in the correct direction before returning to the speed selected by the user. This supports the safe operation of motor windings, capacitors and centrifugal mechanisms.
Adjustable minimum and maximum settings allow each installation to be tailored for reliable motor cooling and lower fan noise. Set the minimum speed to approximately 50% to help ensure adequate cooling, then reduce the maximum speed where quieter operation is required.
Reliable motor control for safe, consistent fan performance.
The KIWI M Series Fan Motor Controller is designed for variable-torque loads, including fans, centrifugal pumps and single-phase electric motors. Soft Start to FULL helps motors start safely and reach operating speed before returning to the user’s selected setting. Explore the range below to find the right controller for your motor application.

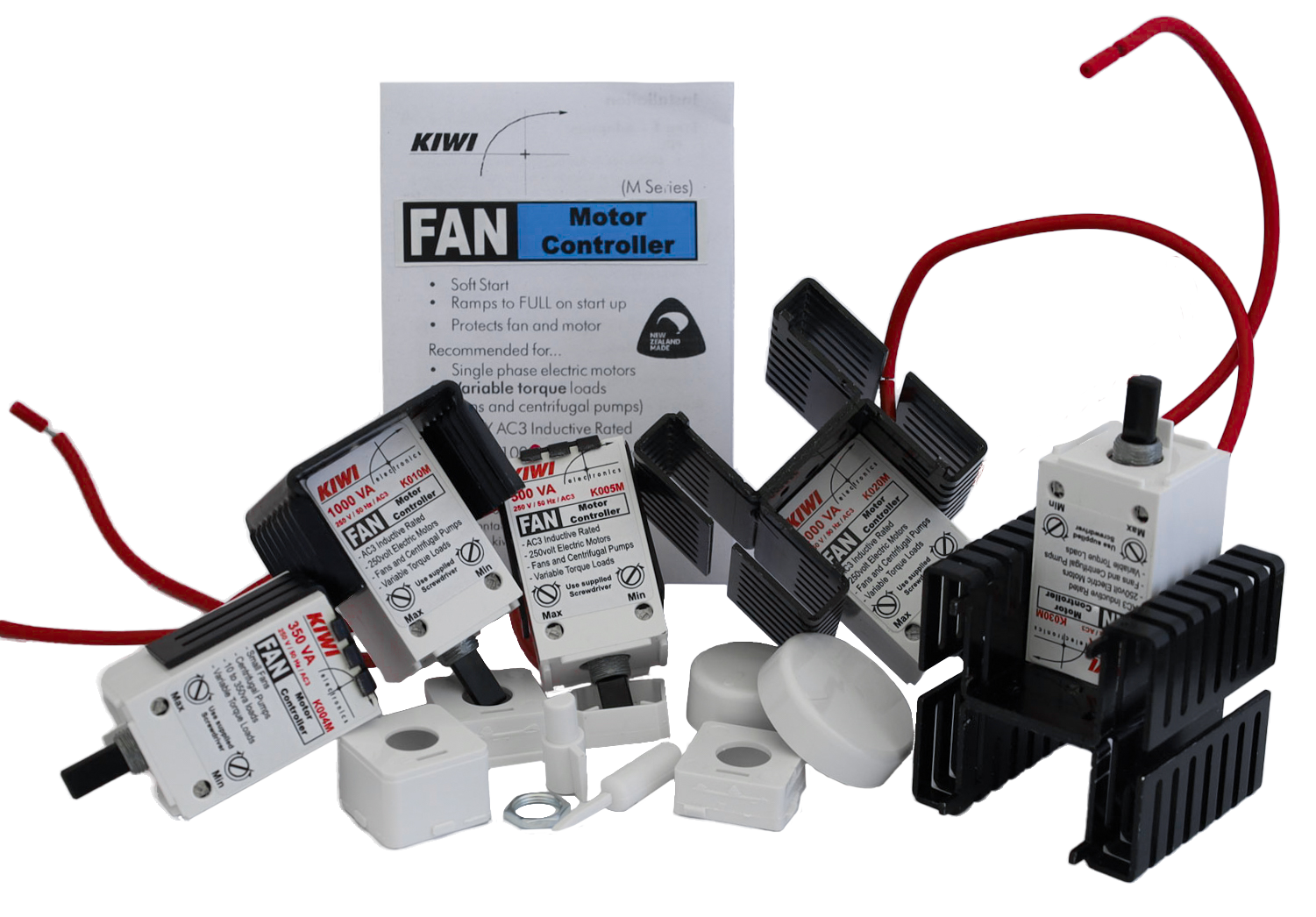

Our M Series Fan Motor Controllers are available in the following models:
Minimum current: 5W for K004M and K005M; 100W for K010M, K020M and K030M.

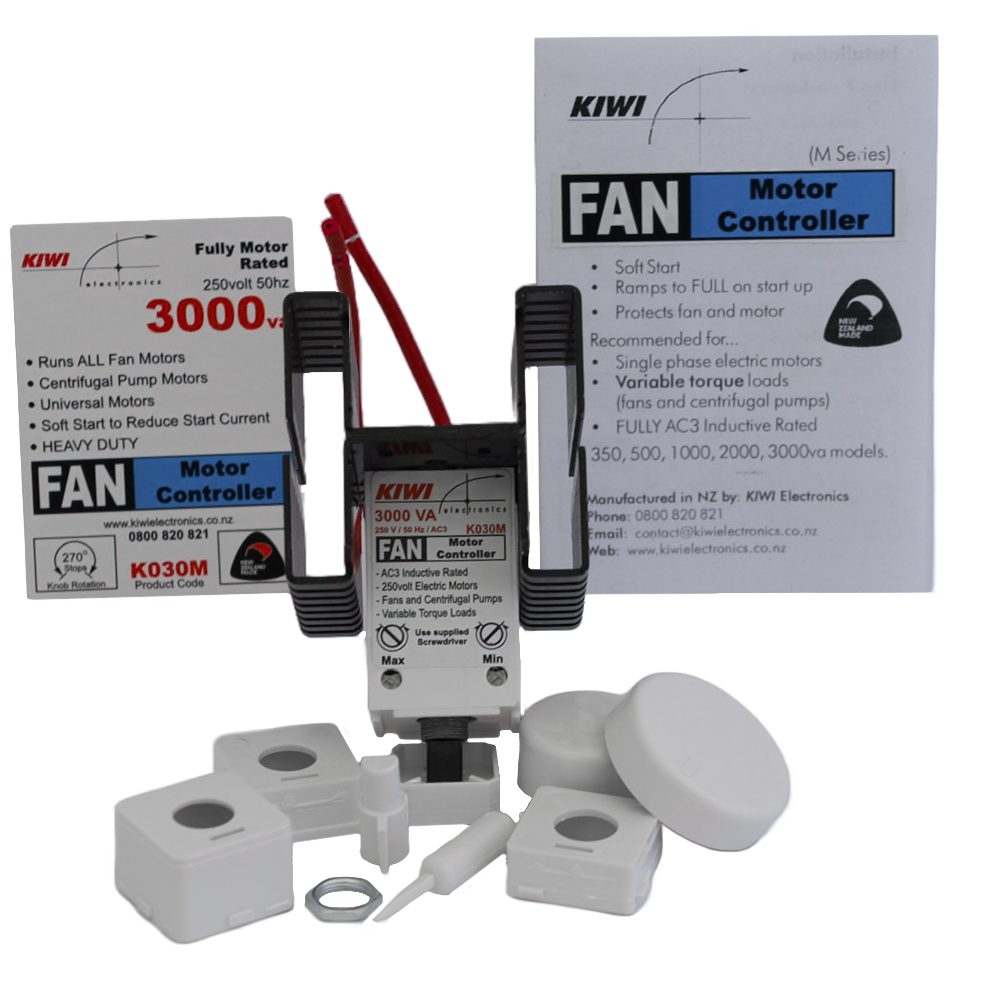

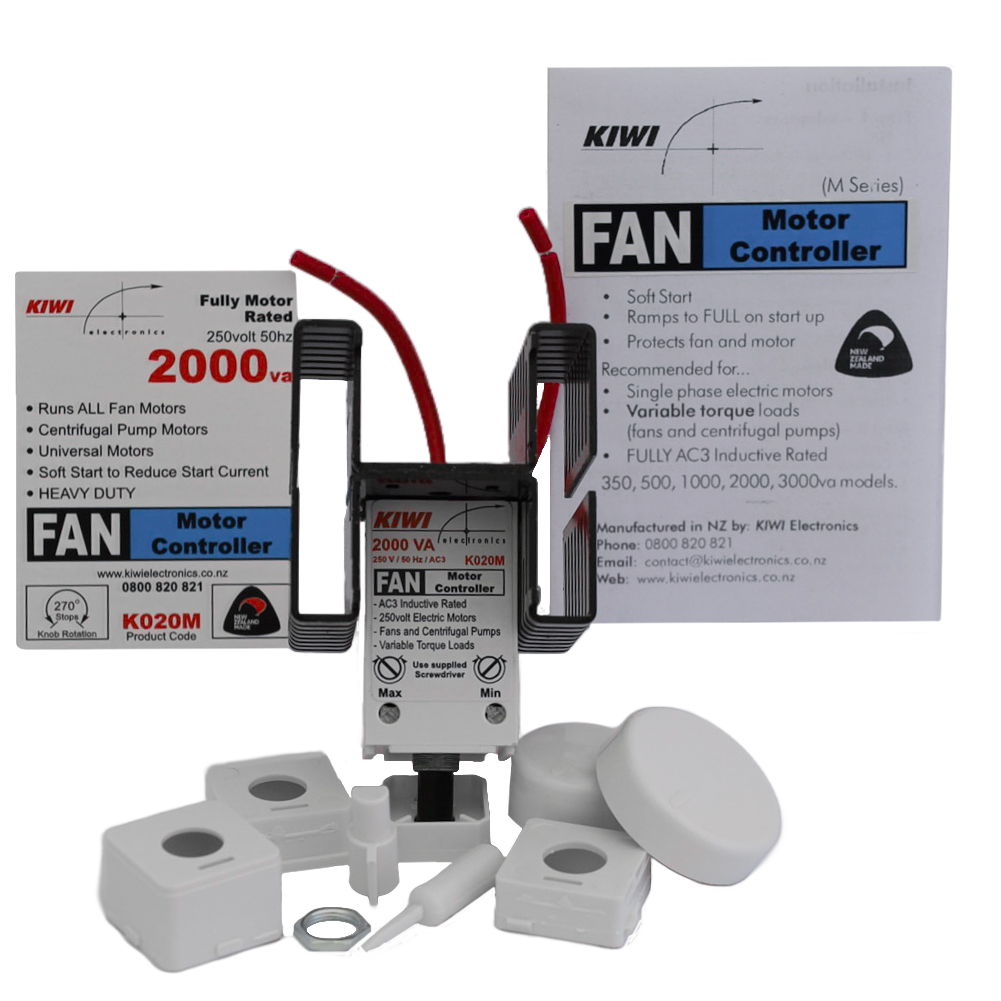

M Series Fan Motor Controllers are available from 350VA to 3000VA, providing motor control directly from the flush plate.
Designed for AC3 inductive loads, including fans, centrifugal pumps and variable-torque single-phase motor applications.
The controller gradually increases voltage to full speed at start-up, helping the motor start safely, rotate in the correct direction and reach operating speed before returning to the user’s selected setting.
Set the minimum speed to approximately 50% to help ensure the motor receives the cooling it was designed for.
Adjustable minimum and maximum settings allow airflow to be tailored to the installation and maximum speed to be reduced where lower fan noise is required.
Adaptors are supplied for PDL 600 Series, PDL 300/Iconic, Generic, HPM and Clipsal flush plates.
Recommended maximum mounting per flush box: 3 x K004M or K005M, 2 x K010M, or 1 x K020M or K030M. Ensure the mounting method promotes adequate airflow.
Built-in thermal protection includes a 16A / 141°C thermal fuse for added safety.
